Injector Splitter Converter PoE

Description

PI300GA is a single port, high-power 60w PoE PSE solution for remote PoE PD devices. Generating up to 60W through 8 pins, PI300GA supplies remote power for new applications such as wireless Access Points, pan- tilt-zoom (PTZ) IP cameras and video-phones. It complies to IEEE 802.3at PoE+ standard to deliver 30w on both end-point and midspan pairs with a total power of 60w PoE output. It can work with 10/100Base-T networking devices and emerging 1000Base-T devices such as Wi-MAX and wireless IEEE 802.11n access points.

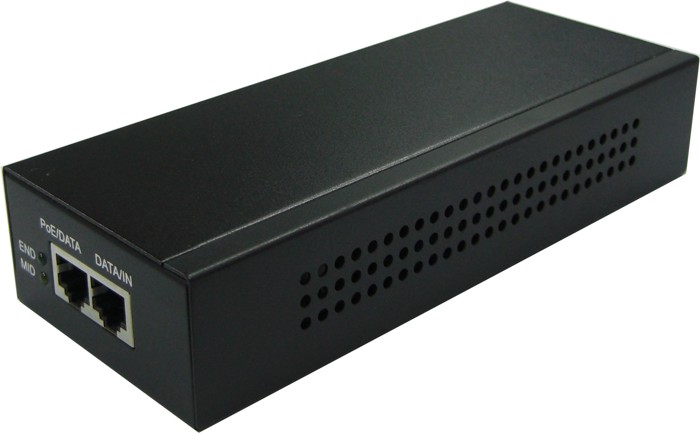

PI300GA


  • Up to 60W of PoE Power Feeding on 4-pairs
  • IEEE 802.3at Compliant with 2-event classification
  • IEEE 802.3af backward compatible
  • Compatible with IEEE 802.3af or Legacy PoE applications
  • Safe on Low Power Devices Receive Only the Power They Need
  • Safe and Reliable Power to WLAN Access Points
  • Automatic Detection and Protection of Non-standard Ethernet Terminals
  • Supports 10/100/1000Base-T LAN environment
