Description
PI106GF-UL is a single port, PoE PSE solution for remote PoE PD devices. It is equipped with 6KV PoE Surge Protection and generating up to 18W, PI106GF-UL supplies remote power for new applications such as wireless Access Points, pan-tilt-zoom (PTZ) IP cameras, 4G/5G LTE and video-phones. It complies to IEEE 802.3af PoE standard and with 56VDC power output. It can work with 10/100/1000Base-T networking devices such as IP Cam and IP phone, etc.

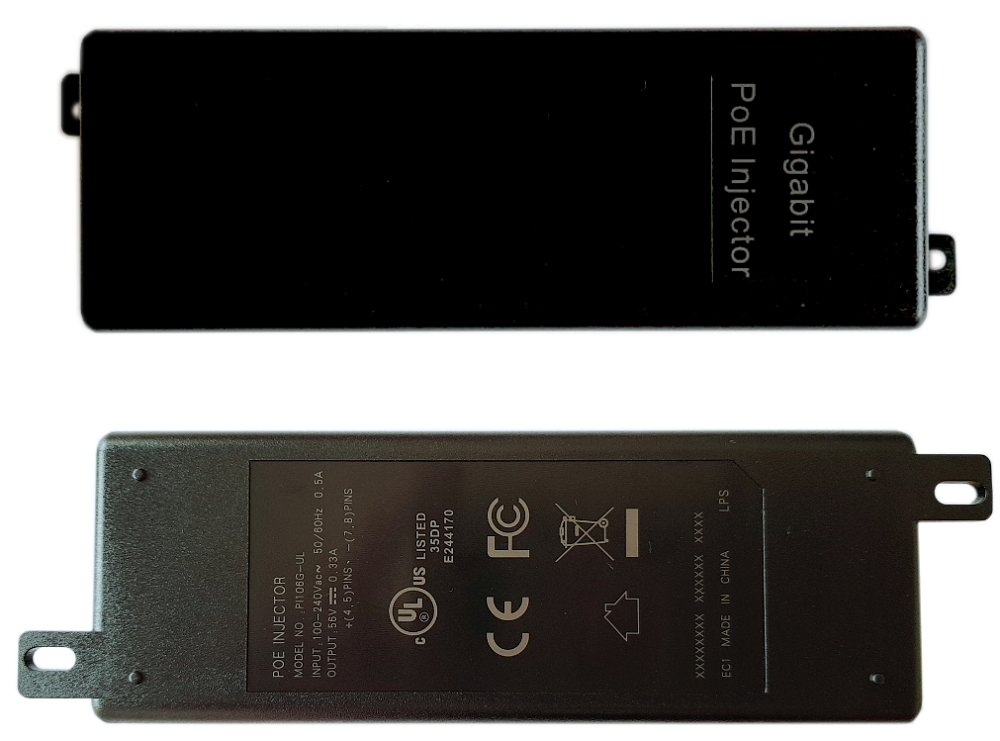

PI106GF-UL
- CE/FCC, UL/cUL certified
- 6KV PoE Surge Protection
- Up to 18W of PoE Power Feeding on 2-pairs
- IEEE 802.3af PoE standard with PD Detection via PoE pin 1,2,3,6
- Over Voltage (60V max.)/Current ( 0.65A max) Protection, Short-Protection
- Safe and Reliable Power to WLAN Access Points, 4G/5G LTE, IP Cam
- Supports 10/100/1000Base-T LAN environment
- Wall-mounted design to well fix the installation
| Hardware Specifications | |
|---|---|
| No. of PoE PSE Ports | 1 |
| Pass Through Data Rates | 10/100/1000 Mbps | Power over Ethernet Output |
| Pin Assignment and Polarity | Pin 1/2(-), 3/6(+) |
| Output Power Voltage | 56 VDC Maximal |
| User Port Power | 18W (PI106GF-UL) or 30W (PI106GA-UL) Max. |
| Input Power AC Input Voltage | 100 ~ 240 VAC |
| Requirements AC Input Current | 0.33A(PI106GF)/0.54A(PI106GA) @100-240 VAC |
| AC Frequency | 50 to 60 Hz |
| Dimension of Injector | 35.5 (H) x 55 (W) x 137.5 (L) mm |
| Weight of Injector | 175g |
| Indicators | DATA Output + Power(Green), DATA In (Green) |
| Connectors | RJ-45 x 1 | Environmental Conditions |
| Operating Temperature | -20 to 60℃ |
| Regulatory | FCC part 15 Class B, EN55032 Class B, |
| PoE Surge Protection | 6KV, EN61000-4-2 ESD |
| Safety Approvals | UL/cUL, IEC/EN 60950 |
| Hazardous Substances | Lead free process, EU Directive 2011/65/EU "RoHS", 2012/19/EU "WEEE", REACH compliant |
