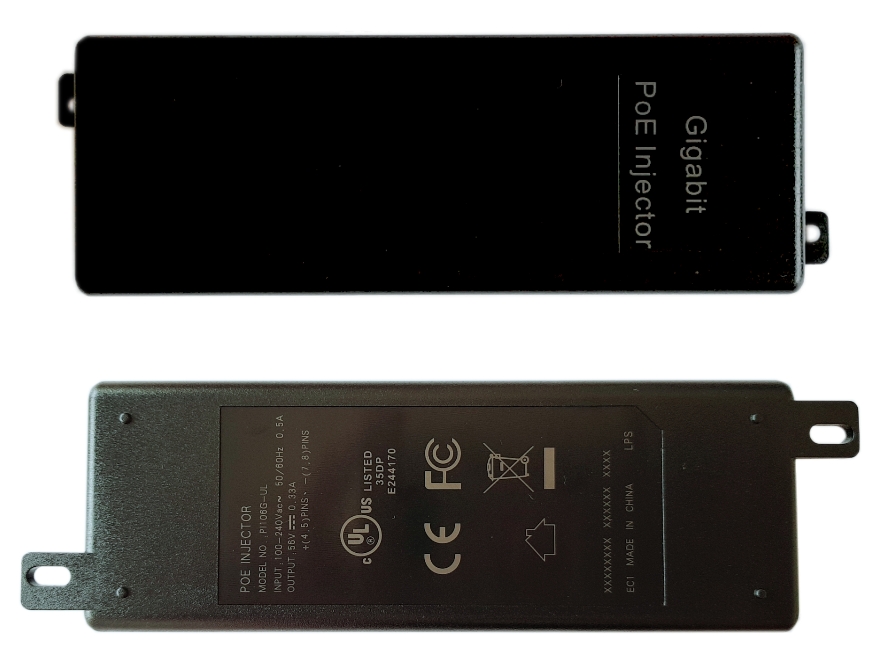

PI106GA-UL is a single port, PoE PSE solution for remote PoE PD devices. It is equipped with 6KV PoE Surge Protection and generating up to 30W, PI106GA-UL supplies remote power for new applications such as wireless Access Points, pan-tilt-zoom (PTZ) IP cameras, 4G/5G LTE and video-phones. It complies to IEEE 802.3at PoE standard and with 56VDC power output. It can work with 10/100/1000Base-T networking devices such as IP Cam and IP phone, etc.
Hardware Specifications | |
---|---|
No. of PoE PSE Ports | 1 |
Pass Through Data Rates | 10/100/1000 Mbps | Power over Ethernet Output |
Pin Assignment and Polarity | Pin 1/2(-), 3/6(+) |
Output Power Voltage | 56 VDC Maximal |
User Port Power | 18W (PI106GF-UL) or 30W (PI106GA-UL) Max. |
Input Power AC Input Voltage | 100 ~ 240 VAC |
Requirements AC Input Current | 0.33A(PI106GF)/0.54A(PI106GA) @100-240 VAC |
AC Frequency | 50 to 60 Hz |
Dimension of Injector | 35.5 (H) x 55 (W) x 137.5 (L) mm |
Weight of Injector | 175g |
Indicators | DATA Output + Power(Green), DATA In (Green) |
Connectors | RJ-45 x 1 | Environmental Conditions |
Operating Temperature | -20 to 60℃ |
Regulatory | FCC part 15 Class B, EN55032 Class B, |
PoE Surge Protection | 6KV, EN61000-4-2 ESD |
Safety Approvals | UL/cUL, IEC/EN 60950 |
Hazardous Substances | Lead free process, EU Directive 2011/65/EU "RoHS", 2012/19/EU "WEEE", REACH compliant |
