Description

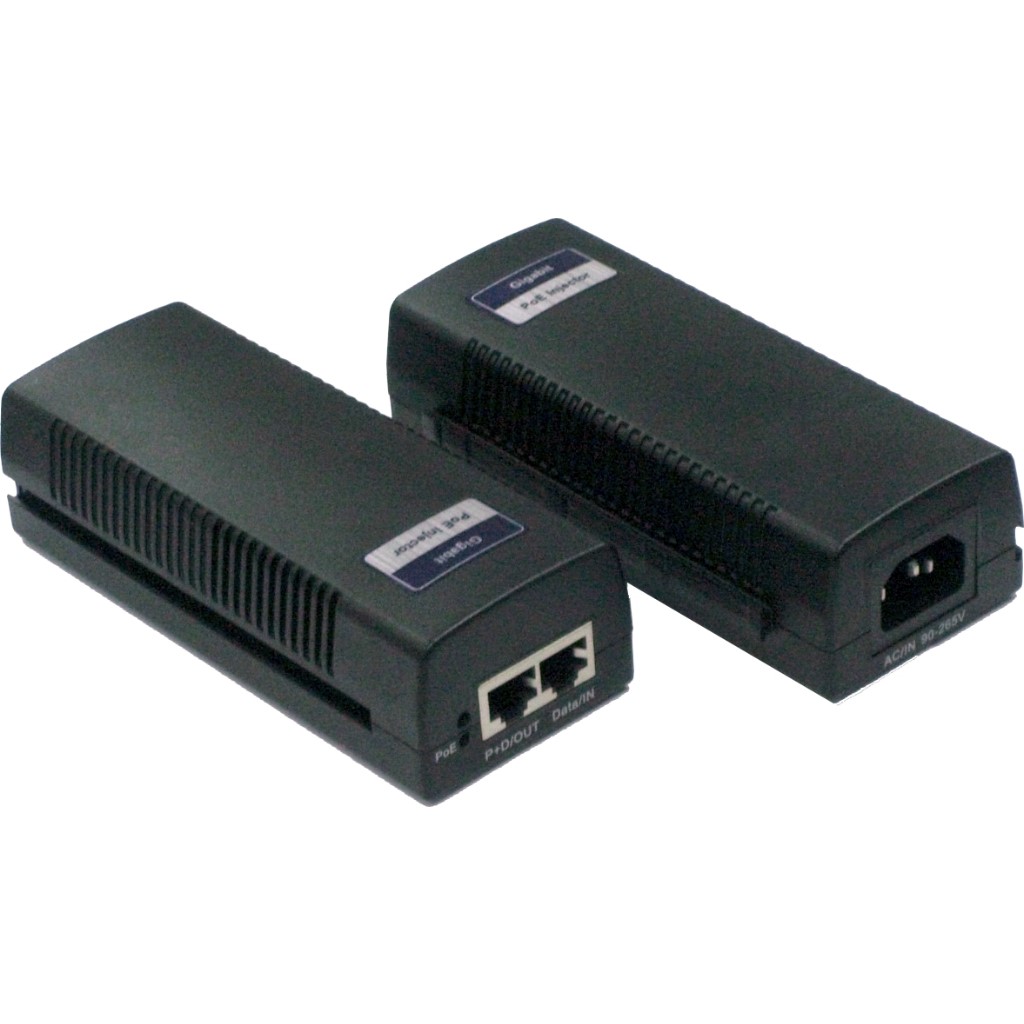

PI100GH is a single port, high-power gigabit PoE PSE solution for remote PoE PD devices. Generating up to 30W, PI100GH supplies remote power for new applications such as wireless Access Points, pan-tilt-zoom (PTZ) IP cameras and video-phones. It can work with IEEE 802.3at/af compliant PoE IP camera, wireless AP, etc.
PI100GH
- Up to 30W of PoE Power Feeding on 2-pairs
- IEEE 802.3at/af Compliant with 10/100/1000Mbps Gigabit Ethernet
- Parallel slide-in design to ease the installation
| Ordering Information | |
|---|---|
| Part Number | Description |
| PI100GH | 30W, mid-span PoE, 802.3at/af compliant, GE, PoE pin 4/5 (+), 7/8 (–) | Specifications |
| No. of PoE PSE Ports | 1 |
| Pass Through Data Rates | 10/100/1000 Mbps | Power over Ethernet Output |
| Pin Assignment and Polarity | 4/5(+), 7/8(-) |
| Output Power Voltage | 52 VDC Maximal |
| User Port Power | 24 Watts Maximal at PD side |
| Input Power AC Input Voltage | 100 ~ 240 VAC |
| Requirements AC Input Current | 0.8A @ 100-240 VAC |
| AC Frequency | 50 to 60 Hz |
| Dimensions | 87.9 mm x 51.3 mm x 166 mm |
| Weight | 350g |
| Indicators | System Indicator: AC Power (Green) |
| Connectors | RJ-45 | Environmental Conditions |
| Operating Ambient Temperature | -10 to 45 ° C |
| Regulatory | RoHS Compliant, CE |
| Safety Approvals | EN 60950:2006 |
