Description
PI100F is a single port, high-power PoE PSE solution for remote PoE PD devices. Generating up to 15.4W, PI100F supplies remote power for new applications such as wireless Access Points, pan-tilt-zoom (PTZ) IP cameras and video-phones. It can work with 10/100Base-T networking devices such as Wi-MAX and wireless IEEE 802.11n access points.

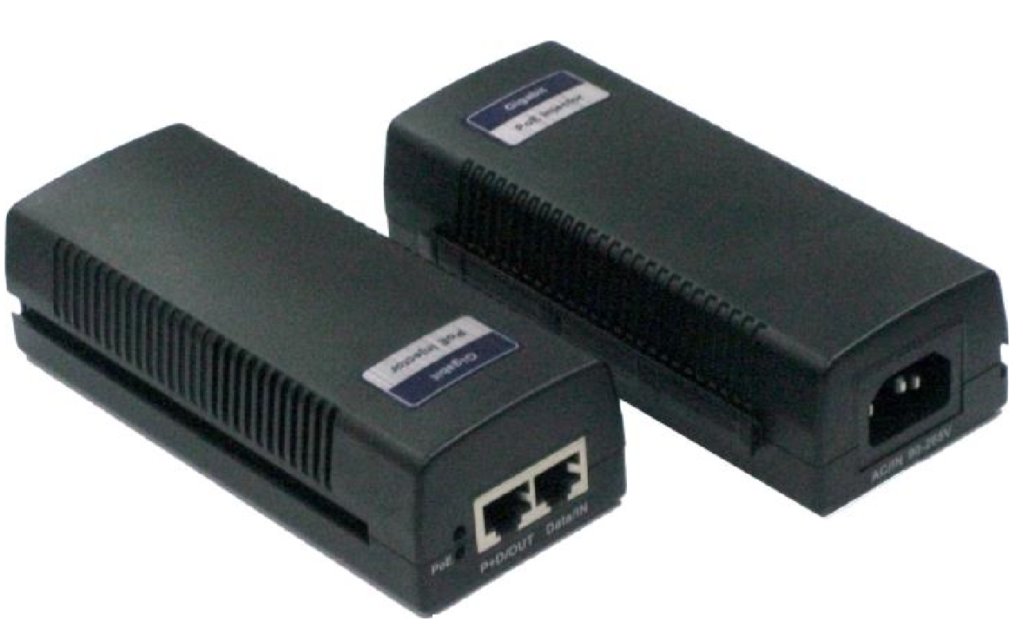

PI100F
- Up to 15.4W of PoE Power Feeding
- IEEE 802.3af compatible
- Safe on Low Power Devices Receive Only the Power They Need
- Safe and Reliable Power to WLAN Access Points
- Automatic Detection and Protection of Non-standard Ethernet Terminals
- Supports 10/100Base-T LAN environment
- Parallel slide-in design to ease the installation
| Specifications | |
|---|---|
| No. of PoE PSE Ports | 1 |
| Pass Through Data Rates | 10/100Mbps | Power over Ethernet Output |
| Pin Assignment and Polarity | 1/2 (+), 3/6 (-) |
| Output Power Voltage | 48 VDC Maximal |
| User Port Power | 15.4 Watts Maximal |
| Input Power AC Input Voltage | 100 ~ 240 VAC |
| Requirements AC Input Current | 0.3A @ 100-240 VAC |
| AC Frequency | 50 to 60 Hz |
| Dimensions | 65 mm x 42 mm x 146 mm |
| Weight | 350g |
| Indicators | System Indicator: AC Power (Green) |
| Connectors | RJ-45 | Environmental Conditions |
| Operating Ambient Temperature | -10 to 45℃ |
| Regulatory | IEEE 802.3af, RoHS Compliant, CE/FCC |
| Safety Approvals | EN 60950:2006 |
