Description

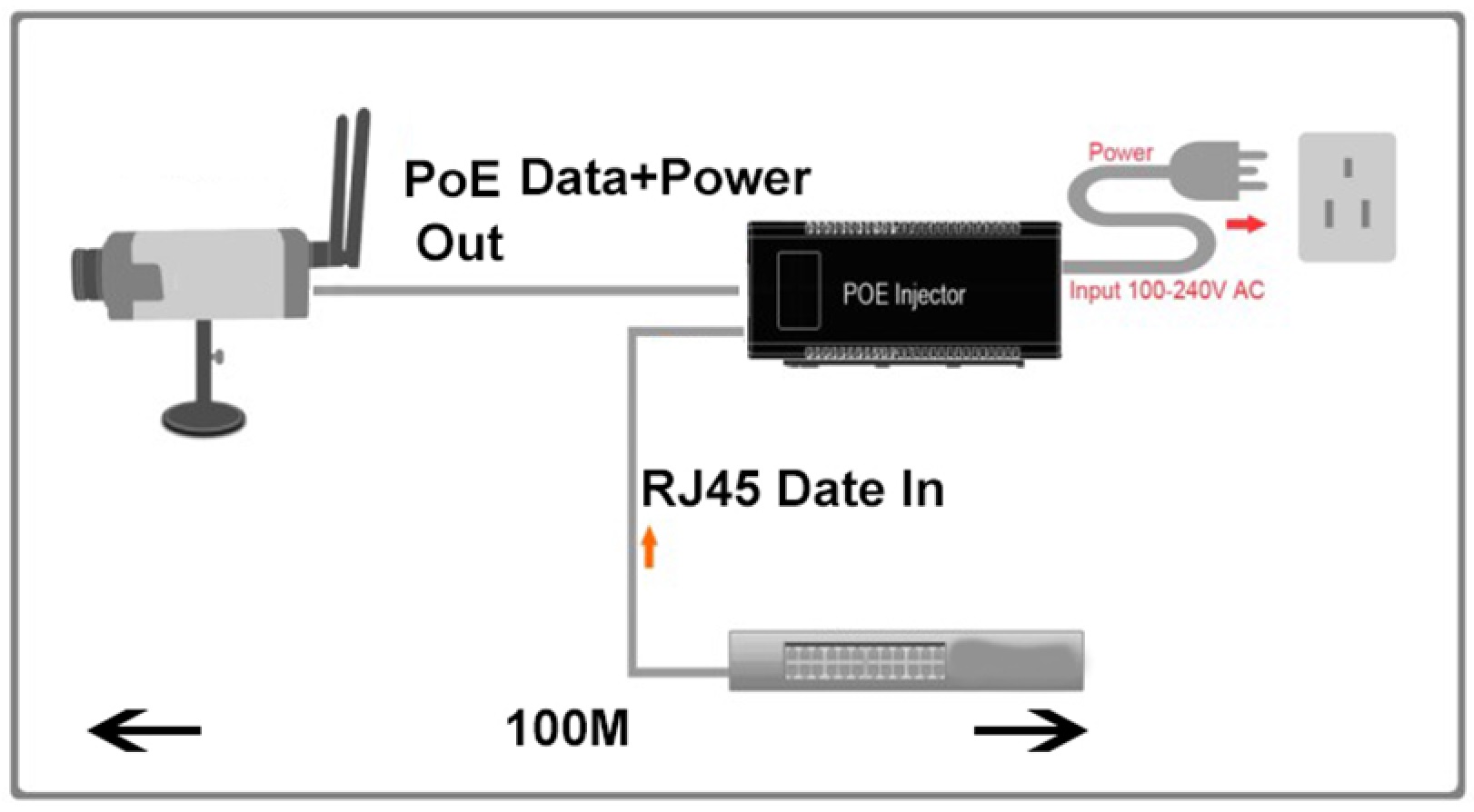

Yoda PI-100 is a single port, PoE PSE solution for remote PoE PD devices. Generating up to 19W, PI-100 supplies remote power for new applications such as wireless Access Points, pan-tilt- zoom (PTZ) IP cameras and video-phones. It complies to IEEE 802.3at PoE standard and backward compatible to IEEE802.3af. It can work with 10/100Base-T networking devices and emerging 1000Base-T devices such as Wi-MAX and wireless IEEE 802.11n access points.

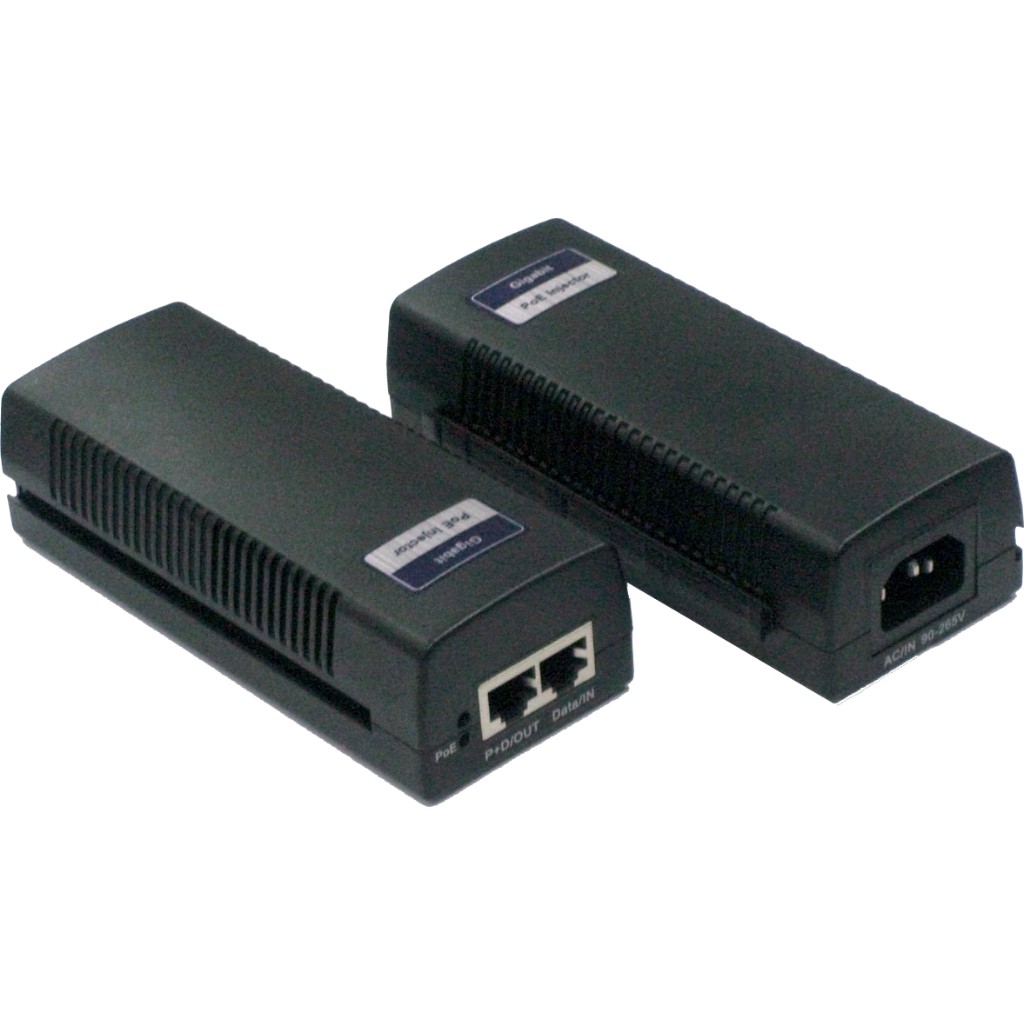

PI100-19W
- IEEE 802.3at/af Power over Ethernet (PoE) standard
- 1-Port 10/100Mbps Ethernet
- Provides up to 19 watts for PoE
| Specifications | |
|---|---|
| No. of PoE PSE Ports | 1 ports FE Auto-MDIX in , 1 port PoE out |
| Pass Through Data Rates | 10/100Mbps |
| Pin Assignment and Polarity | 4/5(+), 7/8(-) |
| Output Power Voltage | 52 VDC Maximal |
| User Port Power | 19 Watts Maximal |
| Input Power AC Input Voltage | 100 ~ 240 VAC |
| Requirements AC Input Current | 0.8A @ 100-240 VAC |
| AC Frequency | 50 to 60 Hz |
| Dimensions | 166 x 87.9 x 51.3 mm mm |
| Weight | 350g |
| Indicators | System Indicator: AC Power (Green) |
| Connectors | RJ-45 | Environmental Conditions |
| Operating Ambient Temperature | 0 to 50 ° C |
| Regulatory | RoHS Compliant, CE |
| Safety Approvals | EN 60950:2006 |
