Injector Splitter Converter PoE

Description

PH800GA-6KV is Power Over Ethernet (PoE) PSE Injector Hub that offers a cost-effective and quick solution to upgrading network system to IEEE 802.3af / IEEE 802.3at Power over Ethernet system without replacing the existing Ethernet Switch.

PH800GA-6KV provides triple protections of over-current, over-voltage and over-temperature on individual PoE port. Meanwhile, it features both IEEE 802.3af and High Power IEEE 802.3at PoE standard that combines up to 30-watt power output and data per port over one CAT 5/5e/6 Ethernet cable.

PH800GA-6KV is designed specifically to satisfy the growing demand of higher power consuming networking application such as video surveillance, wireless Access Point, and 3G / LTE Router which are located outdoor.

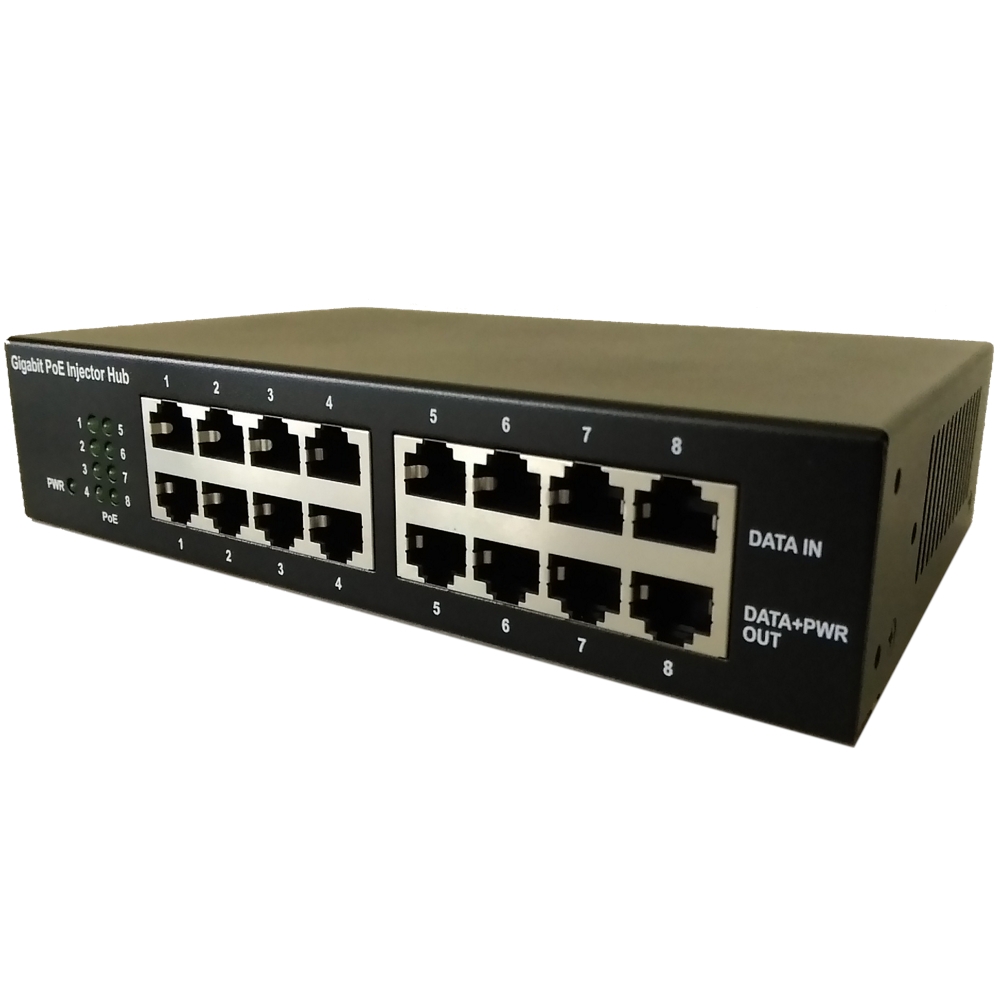

PH800GA-6KV


  • Complies with IEEE 802.3, 10BASE-T, IEEE 802.3u, 100BASE-TX, IEEE802.3ab, 1000BASE-T
  • Complies with IEEE802.3af/at Standard
  • 8-Port supports Power over Ethernet (Port 1~8)
  • Supports PoE power up to 30 watts for each PoE port
  • PoE Surge protection: 6KV
  • AC-DC Power Source (AC 100~240V Input, 56VDC Output)
  • Auto-detection and protection of no-standard PoE device
  • Over Current Protection / Over Temperature Protection / Over Voltage Protection
  • Fanless design ensures quiet operation in small offices and higher reliability over time
  • Remote power feeding up to 100meters
  • Made of metal 19" rack-mount design
Hardware Specifications
Standard IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3ab 1000Base-T
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
DATA IN Ports 8 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
DATA +PWR Out Ports 8 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
Power over Ethernet
PoE Standard IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
PoE Power Supply Type End-span
PoE Power Output Per Port 56V DC, Max. 30 watts
Power Pin Assignment 1/2(-), 3/6(+)
Total Power 250 watts power module embedded
LED Indicators
PWR / PoE 1~8
Physical Specification
Item dimensions (WxDxH) 280 x 160 x 44 mm
Certification
FCC / CE / LVD
Operating Environment
Operating temperature: 0 - 40℃
Storage temperature: -20 - 70℃
Humidity: 20 – 95% non-condensing
