Description

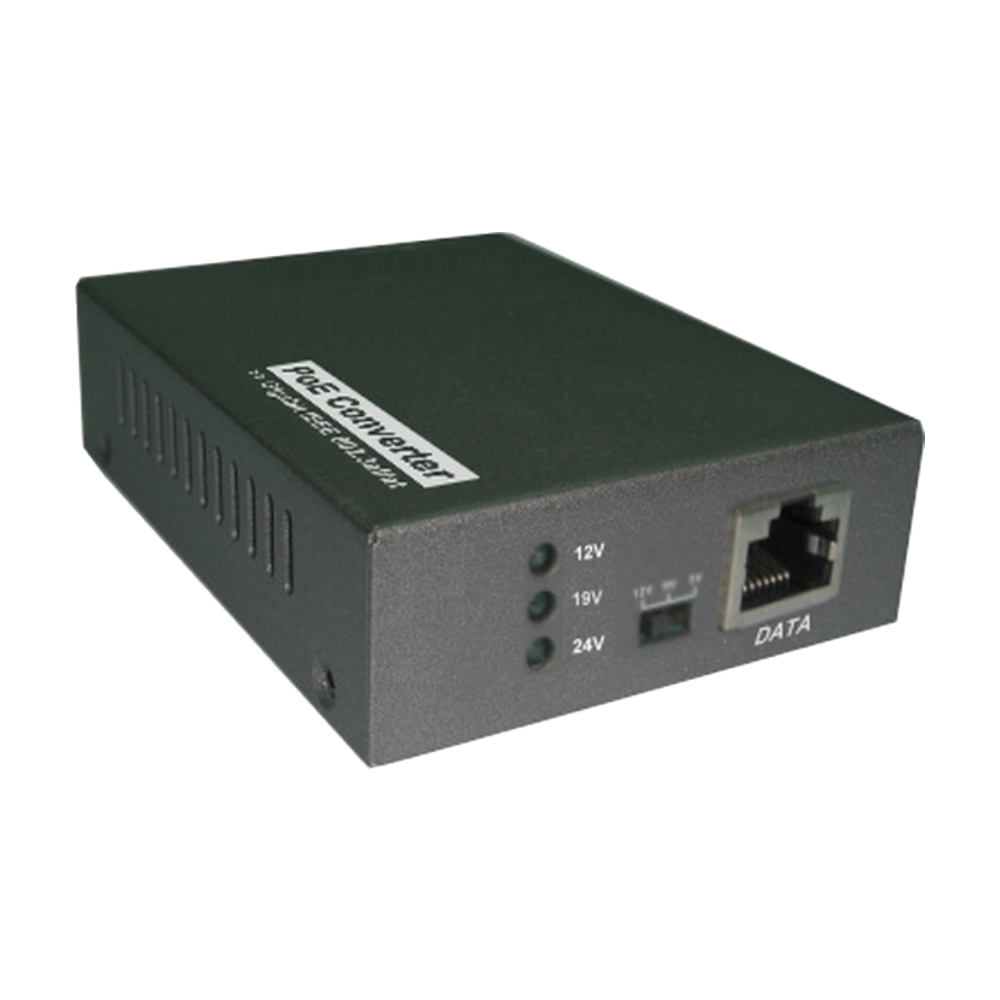

IEEE 802.3at/af to Passive PoE Converter PC300G converts a standard IEEE 802.3at/af PoE input to 12V/19V/24V passive PoE power output device, designed to prevent of the difficulty in finding power outlets in places. Being able to operate under wide temperature range from 0 to 50 degrees C, PC300G can be placed in difficult working environment. The PC300GS is compact and suitable for wall mounting in the cabinet space.
PC300G is a Gigabit Power-over-Ethernet (PoE) Converter providing a 10/100/1000Mbps Ethernet transmission for overall 100-meter distance and via its 12/19/24V DIP Switch to flexibly select PoE power out of 12/19/24V for passive PoE networking devices such as wifi AP.

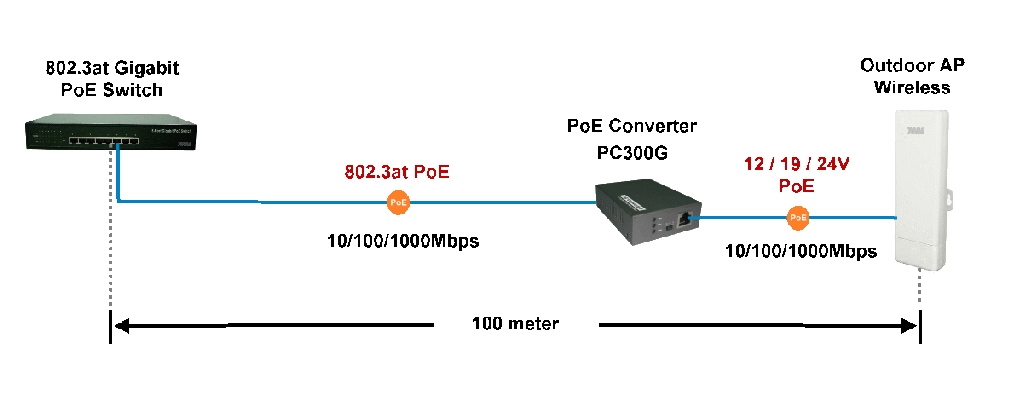

Powered by a Gigabit IEEE 802.3at/af, midspan PoE switch (or gigabit PoE injector), PC300G requires no local power in the middle of the cable making it extremely easy to connect and power up passive network devices.
PC300G
- No local power required
- Wide working temperature range from -40 to 60 degrees C (Optional for model PC300GI)
- 10/100/1000Mbps Ethernet Wire Speed
- Compatible with IEEE 802.3at/af PoE and midspan PoE standard
- DIP Switch for 12/19/24VDC output selection
- LED shows acting DC voltage to ensure the right configuration
- Isolation circuitry
- Simple to install - Plug & Play
| Hardware Specification | |
|---|---|
| Interface | PoE In Port: 1 x IEEE 802.3af/at, midspan PoE RJ-45 Passive PoE Out Port: 1 x non-802.3at/af RJ-45 |
| LED Indicator | Passive PoE Out • 12V (Green) • 19V (Green) • 24V (Green) |
| Network Cable | 10Base-T: 2-Pair UTP Cat. 3, 4, 5 100Base-TX: 2-Pair UTP Cat. 3, 4, 5 1000Base-T: 2-Pair UTP Cat. 5, 5e, 6 EIA/TIA-568 100-ohm STP |
| DIP Switch | 12V/19V/24V DC Output Voltage |
| Power Input | IEEE 802.3at/af Power over Ethernet End-Span / Mid-Span Class 4 PD |
| Power Output | Maximum Passive PoE Output 24W 12V DC, 1A 19V DC, 1A 24V DC, 1A |
| Power Output Pin Assignment | 4/5(+), 7/8(-) |
| Data Rate | 10/100/1000Mbps |
| Maximum Distance | Up to 100meters (Including PC300G) |
| Dimensions (W x D x H) | 95 x 70 x 26 mm |
| Weight | 180g |
| Number of devices that can be powered | 1 |
| Operating Temperature | 0~50 degree C or -40 ~ 60 degrees C (Optional) |
| Storage Temperature | -40 ~ 85 degrees C |
| Operating Humidity | 5 ~ 90%, Relative Humidity, non-condensing |
| Storage Humidity | 5 ~ 90%, Relative Humidity, non-condensing |
| Standards Conformance | |
| Standards Compliance | IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE 802.3at High Power over Ethernet IEEE 802.3af Power over Ethernet |
| Regulation Compliance | FCC Part 15 Class A, CE |
