Injector Splitter Converter PoE

Description

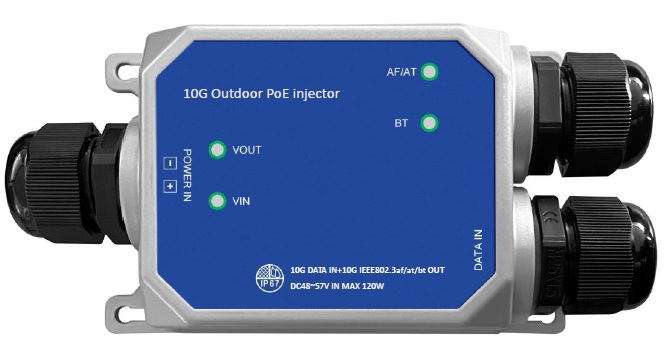

10G Outdoor PoE injector 90W Output

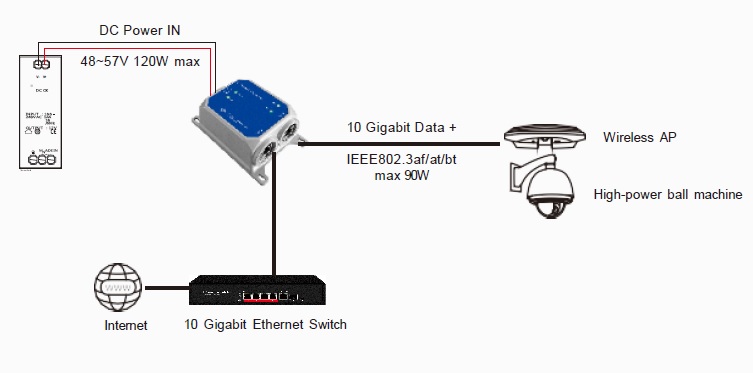

The DI100GT outdoor PoE injector delivers a maximum output power of 90W onto the 10 gigabit Ethernet data input for data transmission. With waterproof of IP67 level, it takes DC power input from DC48V~57V and delivers standard IEEE802.3af/at/bt 90Watt PoE output. It may provide power to the outdoor network devices, such as the IP cameras, the APs, and other devices that support for standard PoE power supply.

DI100GT-90W-ODU


no abstract ...
Specifications
Model DI100GT-90W-ODU
Product name 10G outdoor waterproof PoE injector
Material Aluminum die-casting body
Nylon waterproof joint connector
Waterproof grade IP67
Wire diameter Support network cables with a diameter of 4-8mm
Fixed Port 1*10/100/1000/2500/5000/10G Base-TX Data in
1*10/100/1000/2500/5000/10G Base-TX PoE out
DC in DC48-57V, max. 120W
2P*3.5mm connection terminal
PoE OUT Supports IEEE802.3af/at/bt, max. 90W PoE out
PoE OUT Pin bt: Pin1,2(+) 3,6(-) Pin4,5(+) 7,8(-)
af/at: Pin1,2(+) 3,6(-)
PoE Transmission Distance 10BASE-T : Cat3,4,5 UTP(<=250 meter)
100BASE-TX : Cat5 or higher grade UTP (<=100 meter)
1000BASE-TX : Cat5e or higher grade UTP (<=100 meter)
2500BASE-TX : Cat5e or higher grade UTP (<=100 meter)
5000BASE-TX : Cat6 or higher grade UTP (<=80 meter)
10G BASE-TX : Cat7 or higher grade UTP (<=50 meter)
LED Indicator VIN: Power in normal
VOUT: Output voltage is normal
AF/AT: PoE output is ON for IEEE802.3af/at
BT: PoE output is ON for IEEE802.3bt
Operating Temperature/Humidity -40~+80°C; 5%~90% RH Non condensing
Storage Temperature/Humidity -40~+90°C; 5%~95% RH Non condensing
Product / Packing size (L*W*H) 150*77*43mm / 160*85*47mm
N.W / G.W (kg) 0.27kg / 0.31kg
Lightning Protection level 6KV 8/20us;
Installation Desktop, wall installation
Certificate CE-EMC EN55032; CE-LVD EN62368;
FCC Part 15 Class B; RoHS
Warranty Whole device for 1 year (Accessories not included)
