IEEE 802.3bt Gigabit PoE Injector
With VA Output Display

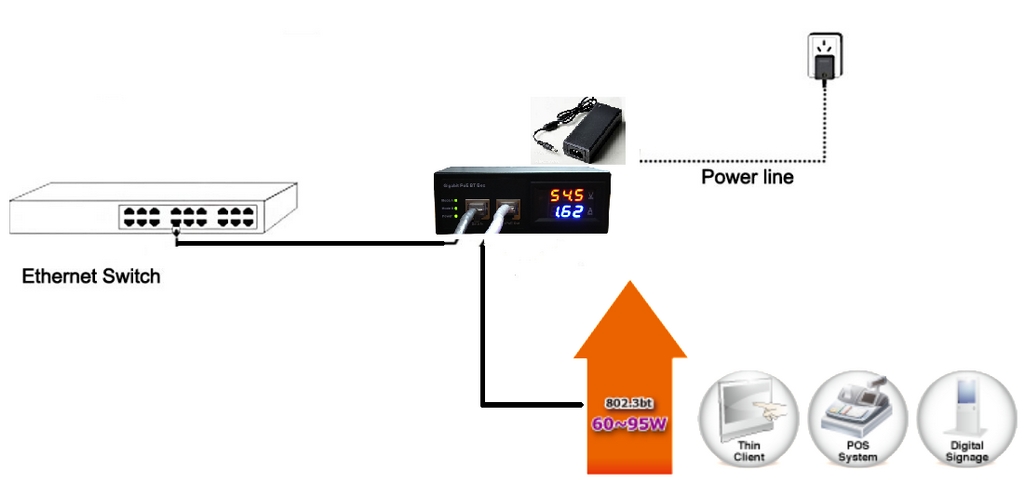

BT Box BT100 is a single port, IEEE 802.3bt 90w PoE PSE injector for remote PoE PD devices of IEEE 802.3bt/at/af, or PoH compliant. Generating up to 90W through 8 pins, BT100 supplies remote power for new applications such as wireless Access Points, 5G CPE, pan-tilt-zoom (PTZ) IP cameras, LED lighting, Panel display for digital signage and video-phones, etc. It complies to IEEE 802.3bt PoE++ standard to deliver 90w on both end-point and midspan pairs with a maximum power budget of 90w PoE output.

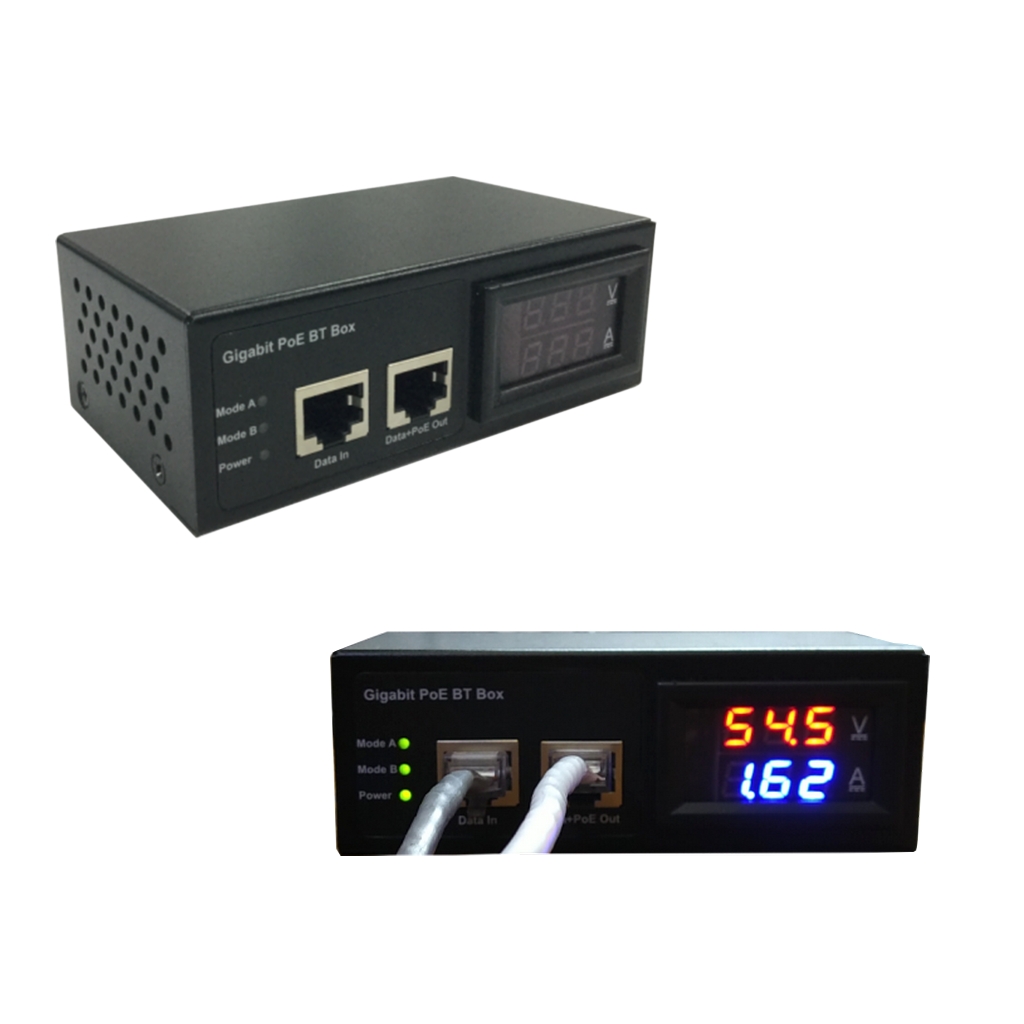

It can work with 10/100Base-T networking devices and emerging 1000Base-T devices. Through its LED window, the output of Voltage and Amp value are displayed and readable for power status monitoring. BT Box BT100 is able to work with either external power adaptor via DC jack or terminal block for existing DC power system.
Additionally BT Box BT100 embeds with RJ45 port as console port to perform PoE configurations and status monitor for engineering purpose and variety field support.
Technical Specifications | |
---|---|
No. of PoE PSE Ports | 1 port IEEE 802.3bt/at/af PoE |
Ethernet Data Rates | 10/100/1000Mbps |
Pin Assignment and Polarity | 1/2(-), 3/6(+), 4/5(+),7/8(-) |
Output Power Voltage | 56 VDC Maximal |
User Port Power | 90 Watts Maximal |
Input Power Voltage | 52~57VDC (52V or above for IEEE 802.3bt application) |
Dimensions | 113 x 64 x 40 mm / 305g (BT100 device only) |
Indicators | Power, Mode A, Mode B |
Connectors | 3 x RJ-45 (Data In, Data+PoE Out, Console) |
Operating Ambient Temperature | 0 to 40℃ |
