Injector Splitter Converter PoE

Description

10G IEEE802.3bt PoE Splitter
60W Isolated Power Output and 10G Data

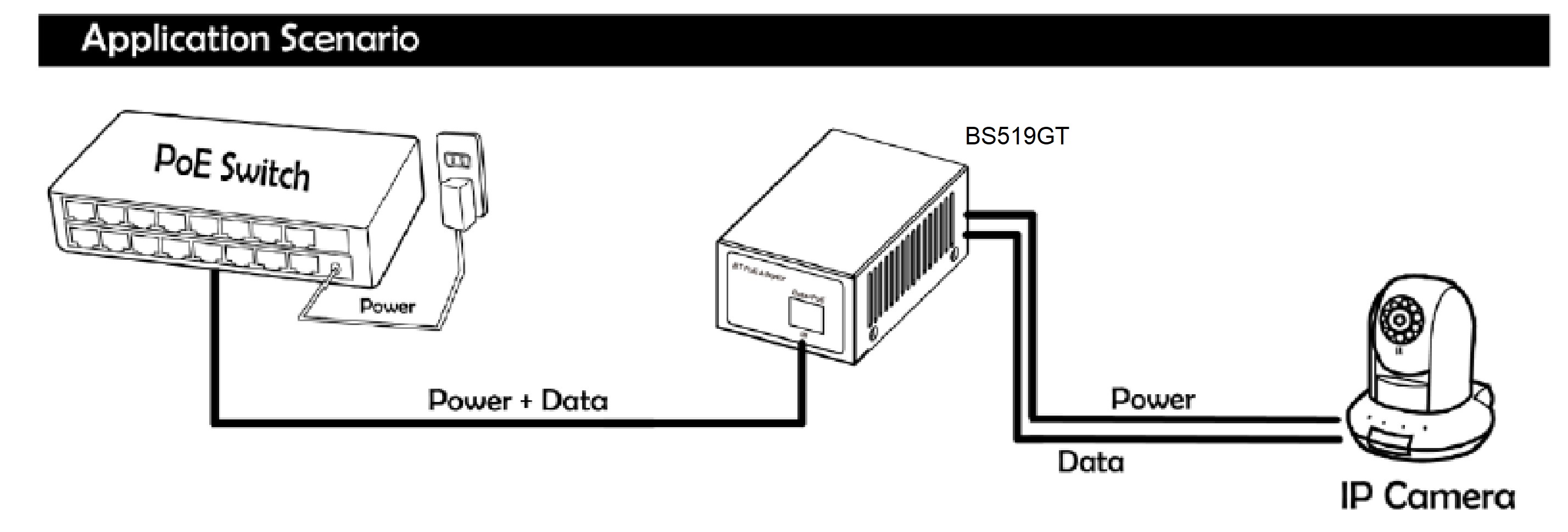

The BS519GT is a 10Gigabit Power over Ethernet (PoE) Splitter, which splits a 10Gigabit Ethernet IEEE802.3bt PoE cable into a separated Gigabit Ethernet and an isolated 19VDC with 60W power output. It allows users to run 10Gigabit speed for CAT6A cables over a 100m distance away from 10G PoE switch while providing isolated 19VDC 60W output and separated data to power up the non-PoE 10G network devices.

With a DC-Jack connector for an isolated 19VDC power output, this BS519G also provides 2 LED indicators: BT and Vout. The BT LED indicates if the BS519G is powered by IEEE802.3bt 60W PoE Switch, and the Vout indicates if the 19VDC is ON. It saves cost when installing various 10G network devices in varied locations without AC adaptor outlets.

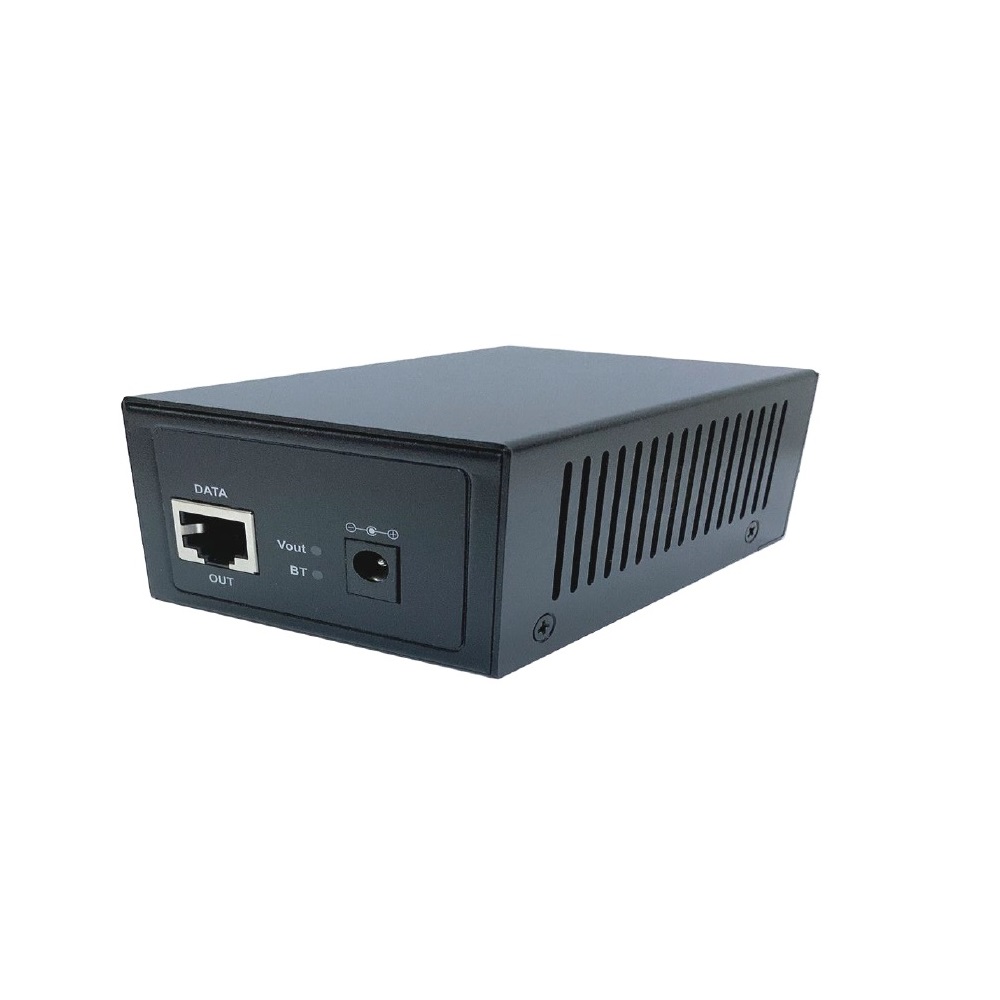

BS519GT


Key Features

  • Splitter Output Voltage: 19VDC with max 60W over PoE CAT6A 100meter distance
  • Power Output Current: up to 2.5A with power isolation
  • Ethernet devices at 10/100/1000M/2.5G/5G/10Gbps speeds within a compact device
  • Auto-sensing power from IEEE802.3bt/at/af or Passive high power PSE devices
  • Safeguards network device with over-current and short-circuit protection
  • Converts Non-PoE devices with Power Over Ethernet Support
  • Wider working temperature of 0 ~ 50 degree C
  • Light weight and compact size with wall mounting capability
  • Fan-less thermal diffusion design

Interfaces

  • 2-Port RJ-45 interfaces : 1x PoE (Data+Power) input, and 1x Data output
  • DC-Jack Connector for 19VDC power output

Power over Ethernet

  • IEEE 802.3bt/at/af PoE standards compliant PD (Powered Device)
  • Supports max. 60watt (19VDC x 3.15A) isolated power output
  • Split the 48~56VDC power over RJ-45 Ethernet cable into 24VDC output
  • Remote power feeding up to 100 meters at the 10Gigabit data

Hardware

  • Metal case with wall-mounting capability
  • LED indicators for IEEE802.3bt PoE and Power voltage output
  • Fan-less thermal diffusion design

Standard Compliances

  • IEEE 802.3an, 10GBase-T
  • IEEE 802.3bz 5G/2.5GBase-T
  • IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-TX
  • IEEE 802.3bt High Power over Ethernet
  • IEEE 802.3at/af Power over Ethernet
  • FCC Part 15 Class A, CE
Hardware Specification
Ethernet Interfaces Input Port (Front Panel)
 1 x RJ-45 UTP
 PoE (Data + Power) Input
Output Port (Back panel)
 1 x RJ-45 UTP
 DC 19V out
LED Indicators Vout: 19VDC output voltage is ON (Green)
BT: PoE Power from IEEE802.3bt source (Green)
PoE Power Source Network Cable 802.3bt PoE (90W):
 4-Pair UTP Cat.6A up to 100m (328ft)
Midspan PoE (60W):
 4-Pair UTP Cat.6A up to 100m (328ft)
Data Rate 10/100/1000M/1G/2.5G/5G/10Gbps Auto Sensing
Dimensions (WxDxH) 66 x 104 x 44 mm
Weight 280g
Input Power Source CAT6A with PoE 48 ~ 56V DC
Max Output Power 60watts (19V/3.15A)
Operating Temperature 0 ~ 50 degrees C
Storage Temperature -10 ~ 70 degrees C
Humidity 20 ~ 95% (Non-condensing)
Power over Ethernet
PoE Standard IEEE 802.3bt 90W Power over Ethernet
PoE Power Input End-Span or Mid-Span auto detection
Power Output DC 19V / 3.15A (Max. 60W) for CAT6A 100m distance
Standards Conformance
Standards Compliance IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet
IEEE802.3an/bz 10G, 5G/2.5GBase-T 10Gigabit Ethernet
IEEE 802.3bt High Power over Ethernet
IEEE 802.3at/af Power over Ethernet
High Power Midspan PoE
Regulation Compliance FCC Part 15 Class A, CE
