Description
IEEE802.3bt PoE to 12VDC Splitter
60W Isolated Power Output and Gigabit Data

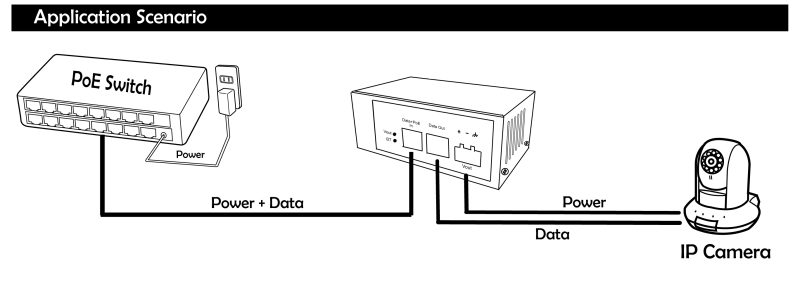

The BS512G is a Gigabit Power over Ethernet (PoE) Splitter, which splits a Gigabit Ethernet IEEE802.3bt PoE cable into a separated Gigabit Ethernet and an isolated 12VDC with 60W power output. This device allows users to run Gigabit speed CAT5e cables over a 100m long distance and then split the PoE signal into separated data and high power output for powering the non-PoE network devices.
Equipped with a terminal block connector for an isolated 12VDC output, this BS512G compact device safeguards valuable network equipment with short-circuit and over-current protections. It saves cost when installing Thin Client PC, POS terminal, Touch Panel PC, Digital Signage Kiosk, LTE, WiMAX, WiFi AP, IP cameras and more in varied locations without electricity outlets.

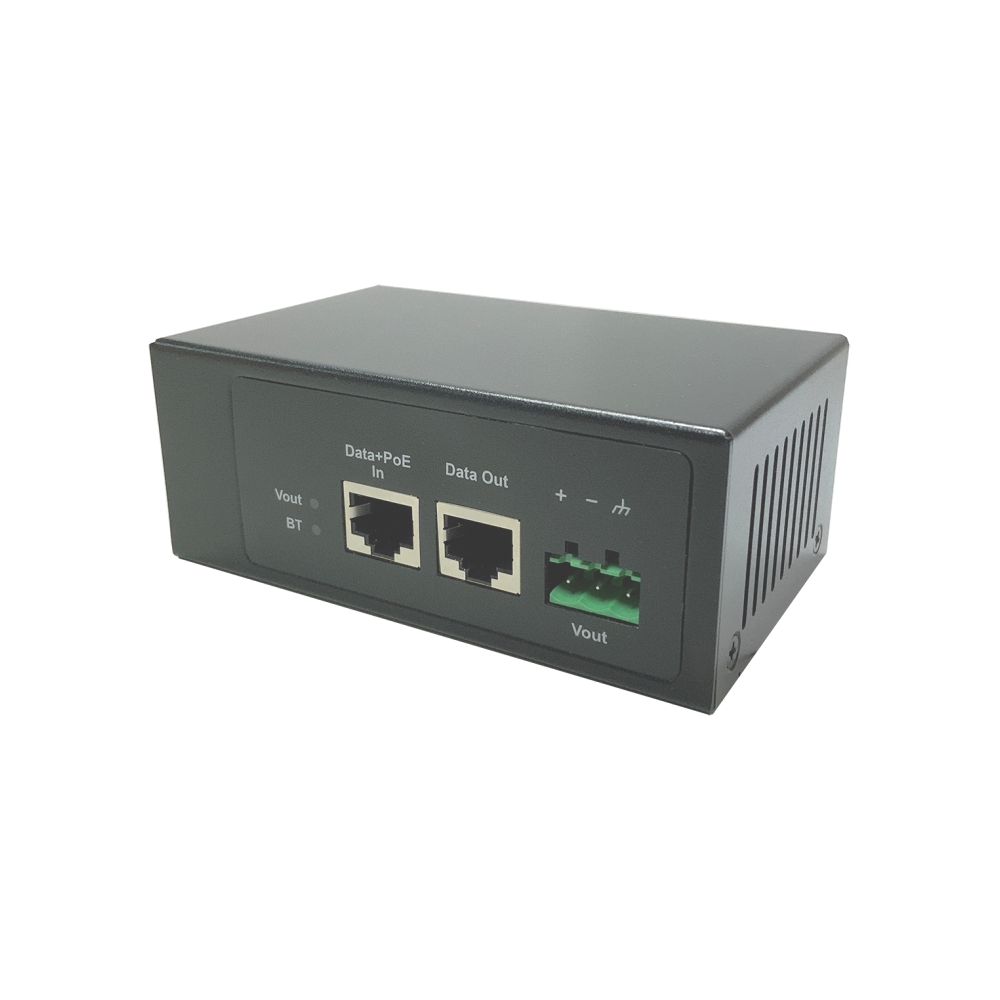

BS512G
Key Features
- Splitter Output Voltage: 12VDC with max 60W for PoE 100meter distance
- Power Output Current: up to 5A with isolation power circuitry
- Ethernet devices at 10/100/1000Mbps speeds within a compact device
- Auto-sensing power drawn from IEEE802.3bt/at/af or Passive high power PSE devices
- Safeguards network device with over-current and short-circuit protection
- Converts Non-PoE devices with Power Over Ethernet Support
- Wider working temperature of 0 ~ 50 degree C
- Light weight and compact size with wall mounting capability
- Plug & Play
Interfaces
- 2-Port RJ-45 interfaces : 1x PoE (Data+Power) input, and 1x Data output
- 3-Pin Terminal Block for DC output power
Power over Ethernet
- IEEE 802.3bt/at/afPoE standards compliant
- Supports max. 60watt (12VDC x 5A) isolated power output
- Split the 48~56V DC power over RJ-45 Ethernet cable into DC 12VDC output
- Remote power feeding up to 100 meters
Hardware
- Metal case with wall-mounting capability
- LED indicators for PoE and Power voltage output
- All-in-one compact size design
Standard Compliances
- IEEE 802.3 10Base-T
- IEEE 802.3u 100Base-TX
- IEEE 802.3ab 1000Base-T
- IEEE 802.3at High Power over Ethernet
- IEEE 802.3af Power over Ethernet
- FCC Part 15 Class A, CE
