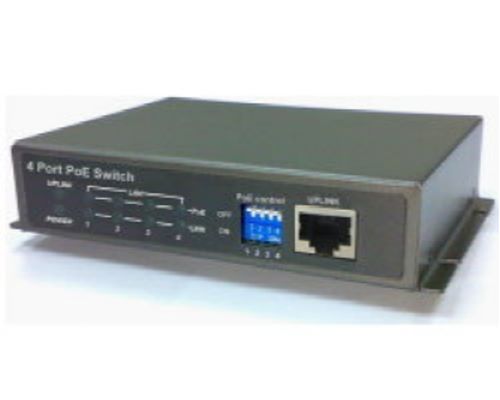

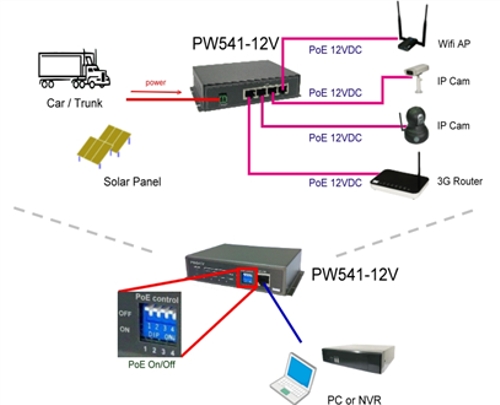

PW541-12v is a 5-port 10M/100M Fast Ethernet Switch with one uplink port + 4 ports of Power over Ethernet capability. With 4 dip switches, each PoE port can be manually set for On-Off control. PW541-12v is supporting power input and PoE output of 12VDC if one port PoE is ON.

Every port can automatically sense your type of cable, so there is no need for crossover cables whether you are connecting this switch to another witch or to a computer.

Power Protection
PW541-12v supports power protections as OVP (Over Voltage Protection), OCP (Over Current Protection), OTP (Over Temperature Protection), robust short-circuit protection and surge protection.

This switch receives and forwards traffic seamlessly with its non-blocking wire-speed. Every port simultaneously supports up to 200Mbps of bandwidth in full-duplex mode. This feature provides full wire speed to the connected devices and allows you to run a smooth network.

Store and Forward
It maximizes network performance while minimizing the propagation of bad network packets.


no abstract ...
Technical Specifications
  • Standards IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE 802.3x Flow Control
  • Features MAC Address: 2K, Buffer Memory: 512K bits Transmission Method: Store and Forward
  • Filtering/Forwarding Rates 10Mbps port - 14,880pps, 100Mbps port - 148,800pps
  • Transmission Media 10BaseT Cat. 3, 4, 5 UTP/STP, 100BaseTX Cat. 5 UTP/STP
  • Uplink Port 1
  • Output PoE Pin 4,5,7,8
  • LED Indicators Power, Uplink , LAN1~4 port , PoE 1~4 port
  • Power Output 12VDC
  • Dimensions 120 x 90 x 28 mm (L x W x H)
  • Weight 1.2 kg
  • Operating Temperature 0 to 50℃
  • Humidity 10 to 90% RH (non-condensing)
  • Certifications FCC , CE
