24V PoE

Description

PI300-24 is a high power, PSE Power Injector with 48VDC power backup, for use in Power over Ethernet systems. With Ethernet Input (data only) port and Output (data + power) port, PI300-24 may deliver up to 48Watts (24VDC/2A) over existing LAN cable to power up PoE PD devices for power hungry PoE applications such as Wireless APs, Security cameras and IP Phones. The internal current limit, short-circuit and overload protection are implemented to provide up to 48W of PSE output power.

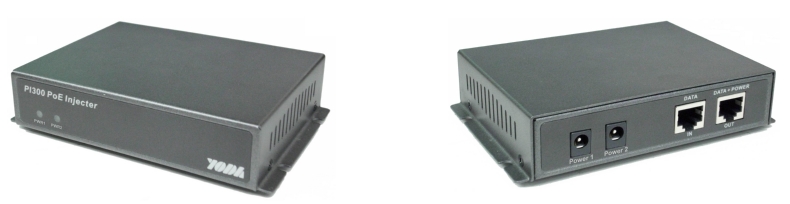

PI300-24


no abstract ...
Advantages:

  • Max 48Watt High Power PSE Power Injector
    •

  • Forwards Power over Ethernet (PoE) to remote
devices
    •

  • DC OUTPUT: 24VDC/2A
    •

  • Ethernet 100Mbps Wire Speed
    •

  • Simple to install - Plug & Play

Technical Specifications:
LAN Interface:
 - IEEE 802.3x, Auto-Detection for 10/100BaseT and
   full/half duplex
 - Standard Straight-through, or Cross-over CAT 5 cable
   Automatic MDIX function
 - RJ-45 Connector x 2

POWER 1:
 - INPUT: 24VDC/2A from external power adaptor with
   100~240VAC input

POWER 2:
 - INPUT: -48VDC ± 10%

LED Indicators:
 - POWER 1   Power 1 is ON (in use)
 - POWER 2   Power 2 is ON (in use)

Regulations & Approvals:
 - FCC Rules Part 15 Class A, CE, RoHS

Physical Dimension:
 - WxDxH: 120 x 90 x 28 (mm)

Operating Environment:
 - Humidity: 5% to 90% non-condensing
 - Temperature: 0 ~40 degree C
