PI300-12v is a PSE Power Injector for use in Power over Ethernet systems. It can be input by power sources of 12~36VDC from solar or vehicle power and step-up with 48VDC output. With Ethernet Input (data only) port and Output (data + power) port, PI300-12v may deliver up to 25Watts over existing LAN cable to power up IEEE 802.3af/at compliant or mid-span PoE PD devices for power hungry PoE applications such as Wireless AP, Security camera and IP Phone. The internal current limit, short-circuit and overload protection are implemented to provide up to 25W of PSE output power.

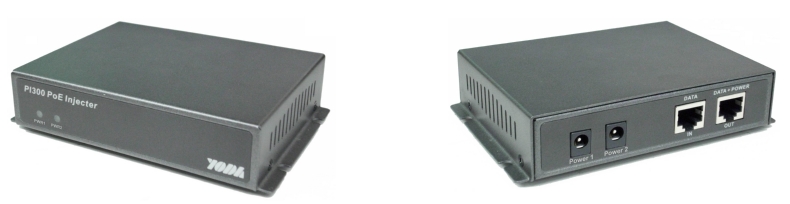

PI300-12v


Advantages:
  • Max 25Watt High Power PSE Power Injector
  • Forwards Power over Ethernet (PoE) to remote devices
  • DC INPUT: 12~36VDC via DC Jack
  • Ethernet 100Mbps Wire Speed
  • Simple to install - Plug & Play
Technical Specifications:
LAN Interface:
 - IEEE 802.3x, Auto-Detection for 10/100BaseT and
   full/half duplex
 - Standard Straight-through, or Cross-over CAT 5 cable
 - Automatic MDIX function
 - RJ-45 Connector x 2

POWER
 - INPUT: 12~36VDC
 - OUTPUT: 56VDC at full load
 - PoE Power: 25 Watt Maximum

LED Indicators:
 - POWER :  Power 1 is ON
 - LAN OUT :  Data Activity of LAN OUT Port
 - LAN IN :  Data Activity of LAN IN Port

Regulations & Approvals:
 - FCC Rules Part 15 Class A,
 - CE

Physical Dimension:
 - WxDxH: 120 x 90 x 28 (mm)

Operating Environment:
 - Humidity: 5% to 90% non-condensing
 - Temperature: 0 ~60 degree C
