24V PoE

Cinque Terre

PH1200GH(12-port)/PH2400GH(24-port) series are rack mounted Power Over Ethernet (PoE) PSE Injector Hub. It provides triple protections of over-current, over-voltage and over-temperature on individual PoE port.

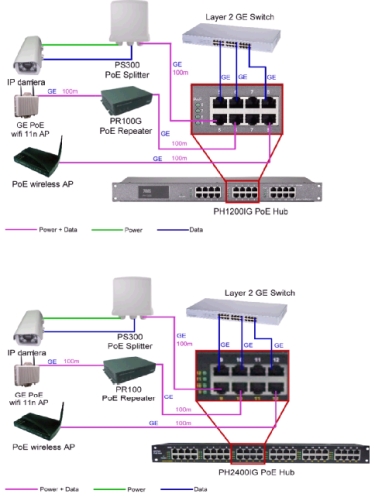

It supplies PoE power of upto 30w per port over existing LAN cable to power up IEEE 802.3at or mid-span PoE compliant network devices or through PoE splitter for non-PoE devices such as WiMAX, wireless Access Point, IP Cam, IP Phone, Access Control, etc.

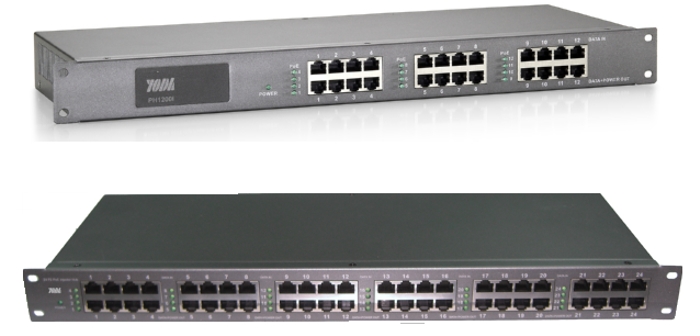

PH1200GH-2400GH-24v


no abstract ...
Specification
  • Interface "Data Input" Ports: 12 or 24 x RJ-45 STP "PoE (Data+Power)" Output Ports: 12 or 24 x RJ-45 STP
  • LED Power x 1 (Green), PoE Status x 12 or 24 (Green)
  • Network Cable 10Base-T: 2-Pair UTP Cat. 3, 4, 5, up to 100m (328ft) 100Base-TX: 2-Pair UTP Cat. 3, 4, 5, up to 100m (328ft) EIA/TIA- 568 100-ohm STP (100m) 1000Base-TX: 2-Pair UTP Cat. 3, 4, 5, up to 100m (328ft)
  • Dimension (W x D x H) 480 x 160 x 44 mm(1U height)
  • Weight 3.8kgs (PH1200GH-24v), 4.2kgs (PH2400GH-24v)
  • Operating Temperature 0 ~ 50 Degree C
  • Storage Temperature -40 ~ 70 Degree C
  • Humidity 5 ~ 95% (Non-condensing)
Power over Ethernet
  • PoE Standard IEEE 802.3at PoE /Mid-Span PoE compliant
  • PoE Function Auto Recovery , OVP , OCP, OTP
  • PoE Power Output Per Port DC 24V/30watts
  • Power Pin Assignment 4/5(+), 7/8(-)
  • PoE Power Budget 250watt (PH1200GH-24v) or 370 watt (PH2400GH-24v)
Standards Conformance
  • Standards Compliance IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-TX Giga Ethernet IEEE 802.3af Power over Ethernet
  • Regulation Compliance FCC Part 15 Class A, CE
