24V PoE

Cinque Terre

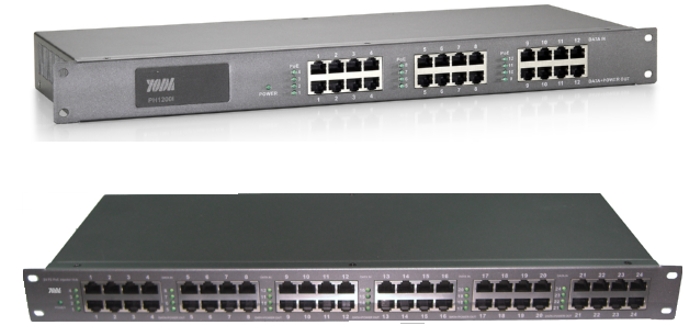

PH1200GH(12-port)/PH2400GH(24-port)-24v series are rack mounted Power Over Ethernet (PoE) PSE Injector Hub. It provides triple protections of over-current, over-voltage and over-temperature on individual PoE port.

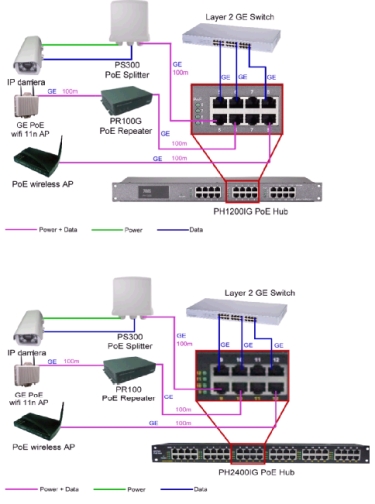

It supplies PoE power of upto 15w per port over existing LAN cable to power up passive PoE compliant network devices such as WiMAX, wireless Access Point, etc.

PH1200G-2400G-24v


no abstract ...
Specification
  • Interface "Data Input" Ports: 12 or 24 x RJ-45 STP "Power+Data (PoE) Out" Ports: 12 or 24 x RJ-45 STP
  • LED Power x 1 (Green), PoE Status x 12 or 24 (Green)
  • Network Cable 10Base-T: 2-Pair UTP Cat. 3, 4, 5, up to 100m (328ft) 100Base-TX: 2-Pair UTP Cat. 3, 4, 5, up to 100m (328ft) EIA/TIA- 568 100-ohm STP (100m) 1000Base-TX: 2-Pair UTP Cat. 3, 4, 5, up to 100m (328ft)
  • Dimension (W x D x H) 480 x 160 x 44 mm(1U height)
  • Weight 3.8kgs (PH1200G-24v), 4.2kgs (PH2400G-24v)
  • Operating Temperature 0 ~ 50 Degree C
  • Storage Temperature -40 ~ 70 Degree C
  • Humidity 5 ~ 95% (Non-condensing)
Power over Ethernet
  • PoE Standard Passive PoE
  • PoE Function Auto Recovery , OVP , OCP, OTP
  • PoE Power Output Per Port DC 24V/15watts
  • Power Pin Assignment 4/5(+), 7/8(-)
  • PoE Power Budget 250watt (PH1200G-24v) or 370 watt (PH2400G-24v)
Standards Conformance
  • Standards Compliance IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-TX Giga Ethernet
  • Regulation Compliance FCC Part 15 Class A, CE
